Drop Test Static
Home Up Ultrasonic Cleaner


A Quasi Static Drop Test is a way of simulating dynamic drop impact without doing a dynamic or nonlinear analysis. Basically it involves applying g loads equivalent to a fixed height drop and applying fixed boundary conditions on the area of impact being investigated. The shock load was applied to a specific point and in a specific direction via vector steering. It can be a reasonable approximation of an equivalent nonlinear response analysis which should be more accurate but requires much more computation time. Linear analyses that go nonlinear indicate a need to do a nonlinear analysis.

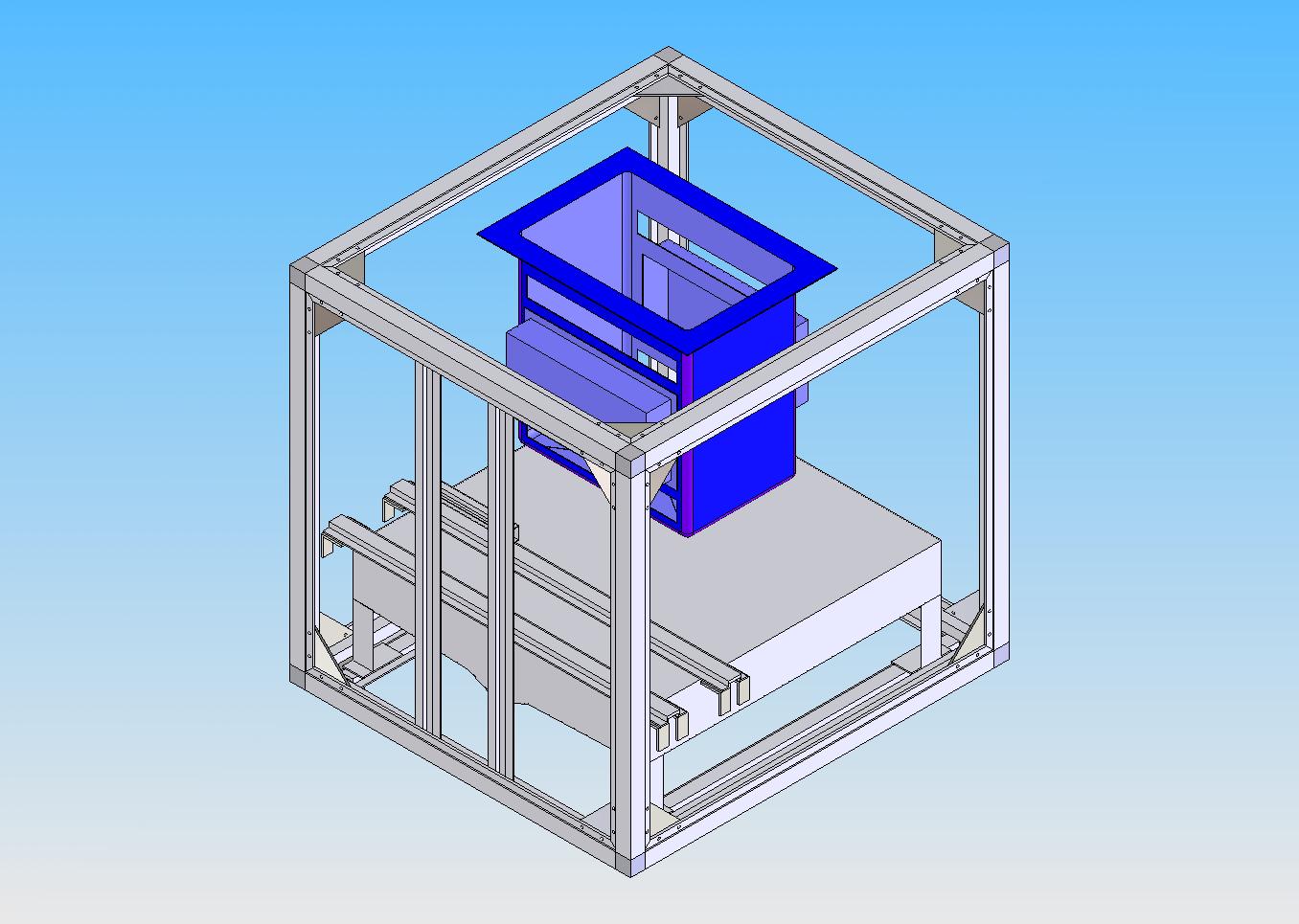

Click on the image below to see the FEA model

Ultrasonic Cleaner

Client created the solid model with SolidWorks
DeepSoft created a simplified but structurally significant solid model with SolidWorks
DeepSoft created the FEA model and did the FEA with Algor & InCAD
